os cable
KEVLAR
Engineered for excellence. Our product delivers the best elongation characteristics in its category. The result is a consistently stable sail shape.
Engineered for excellence. Our product delivers the best elongation characteristics in its category. The result is a consistently stable sail shape.
End Fitting Type
End Fitting Type
CUT / BOBBIN
CUT / BOBBIN
Application
Application
Torsional | Sail Leech, Foot & Luff
Torsional | Sail Leech, Foot & Luff
Products
description:

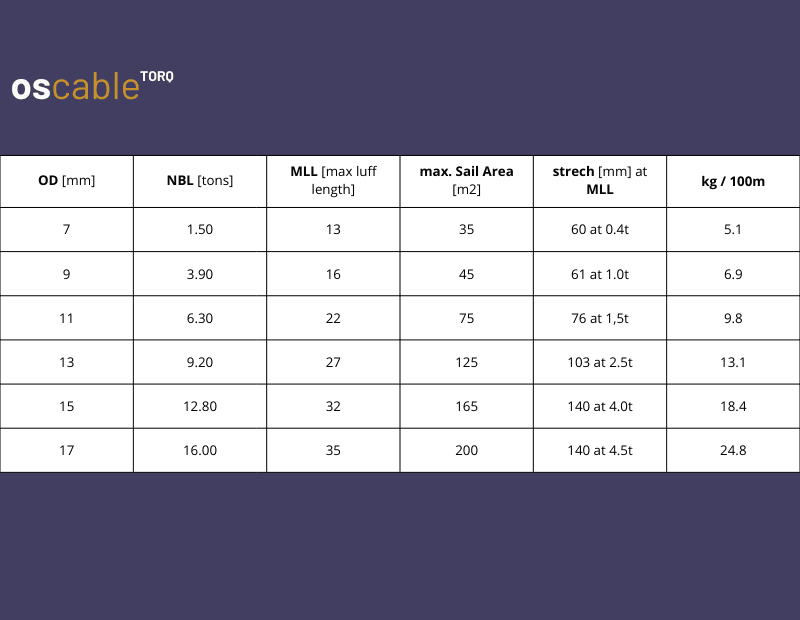

The oscable_TORQ is a K49 torsional cable – the only unidirectional core available on the market.
Thanks to its multiple braided torsional jackets and polyester cover, it can be cut to any length on site and secured with standard clamps found anywhere.
At the same time, the OS is extremely sailmaker-friendly: it can be stitched and finished directly in the sail loft, delivering a clean, professional, and elegant finish.
Core Material: K49
Recommended Applications: Removable Stay / Temporary Stay - Asym Spinnaker, Gennaker, Code 0, Reacher
Boat Type: Cruise, Cruise-Performance
Boat Size: up to 65ft.
Available size:
OD: 7mm | BL: 1500kg | max. sail area: 35m2
OD: 9mm | BL: 3900kg | max. sail area: 45m2
OD: 11mm | BL: 6300kg | max. sail area: 75m2
OD: 13mm | BL: 9200kg | max. sail area: 125m2
OD: 15mm | BL: 12800kg | max. sail area: 165m2
OD: 17mm | BL: 16000kg | max. sail area: 200m2
The oscable_LEECH is a unidirectional cable, the only K49 unidirectional core in the market which can be used for the leech, foot or luff adjustment.
Product is a very sailmaker friendly product as it can be easily stitched and finished in the sail loft giving a very nice and tidy look. If a lashing system will be used for adjusting, a friction ring can be fitted. The oscable_LEECH offers superior elongation performance compared to other solutions currently available on the market.
This low stretch characteristic is essential for maintaining a stable and consistent sail shape, eliminating the need for repeated length adjustments after use.
Core Material: K49
Recommended Applications: Sail Leech, Foot, Luff
Our current catalogue includes diameters of 3-4-5 mm.
OD: 3mm | BL: 450kg | EA: 0.3MN | 0.95kg/100m
OD: 4mm | BL: 750kg | EA: 0.5MN | 1.40kg/100m
OD: 5mm | BL: 1100kg | EA: 0.75MN | 1.95kg/100m
The oscable_TORQ is a K49 torsional cable – the only unidirectional core available on the market.
Thanks to its multiple braided torsional jackets and polyester cover, it can be cut to any length on site and secured with standard clamps found anywhere.
At the same time, the OS is extremely sailmaker-friendly: it can be stitched and finished directly in the sail loft, delivering a clean, professional, and elegant finish.
Core Material: K49
Recommended Applications: Removable Stay / Temporary Stay - Asym Spinnaker, Gennaker, Code 0, Reacher
Boat Type: Cruise, Cruise-Performance
Boat Size: up to 65ft.
Available size:
OD: 7mm | BL: 1500kg | max. sail area: 35m2
OD: 9mm | BL: 3900kg | max. sail area: 45m2
OD: 11mm | BL: 6300kg | max. sail area: 75m2
OD: 13mm | BL: 9200kg | max. sail area: 125m2
OD: 15mm | BL: 12800kg | max. sail area: 165m2
OD: 17mm | BL: 16000kg | max. sail area: 200m2
The oscable_LEECH is a unidirectional cable, the only K49 unidirectional core in the market which can be used for the leech, foot or luff adjustment.
Product is a very sailmaker friendly product as it can be easily stitched and finished in the sail loft giving a very nice and tidy look. If a lashing system will be used for adjusting, a friction ring can be fitted. The oscable_LEECH offers superior elongation performance compared to other solutions currently available on the market.
This low stretch characteristic is essential for maintaining a stable and consistent sail shape, eliminating the need for repeated length adjustments after use.
Core Material: K49
Recommended Applications: Sail Leech, Foot, Luff
Our current catalogue includes diameters of 3-4-5 mm.
OD: 3mm | BL: 450kg | EA: 0.3MN | 0.95kg/100m
OD: 4mm | BL: 750kg | EA: 0.5MN | 1.40kg/100m
OD: 5mm | BL: 1100kg | EA: 0.75MN | 1.95kg/100m
